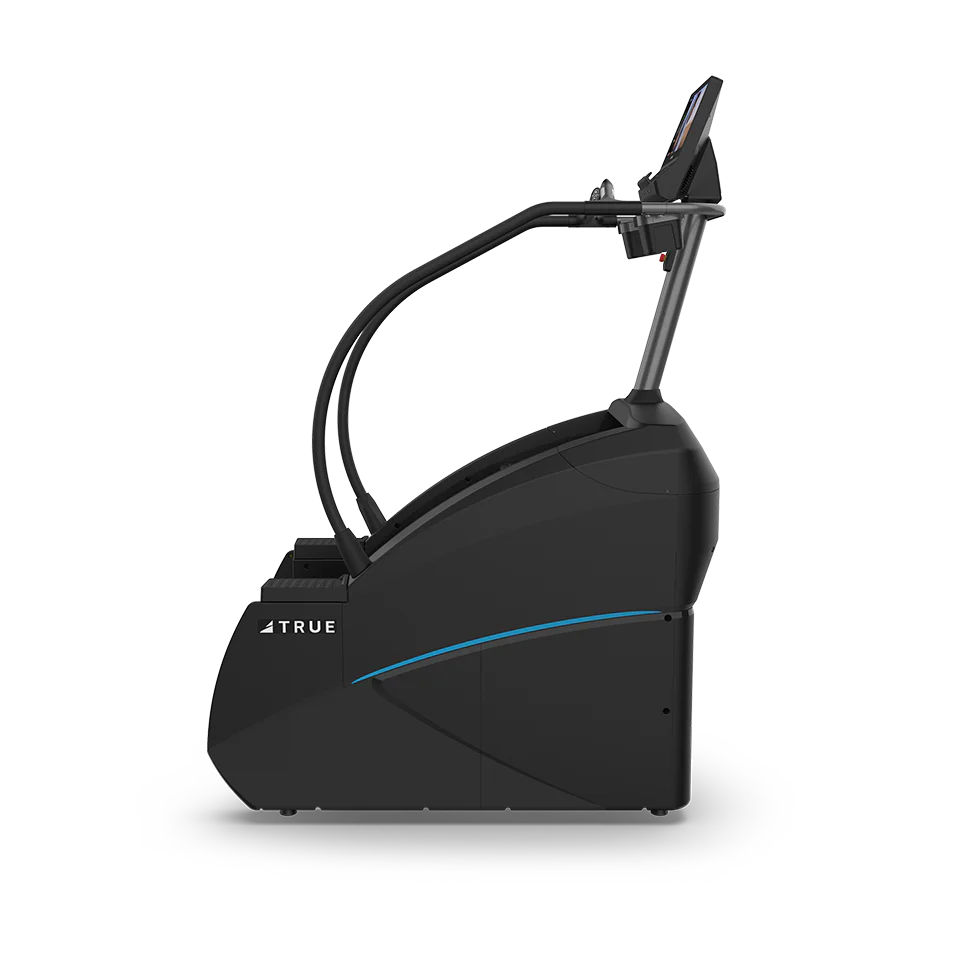

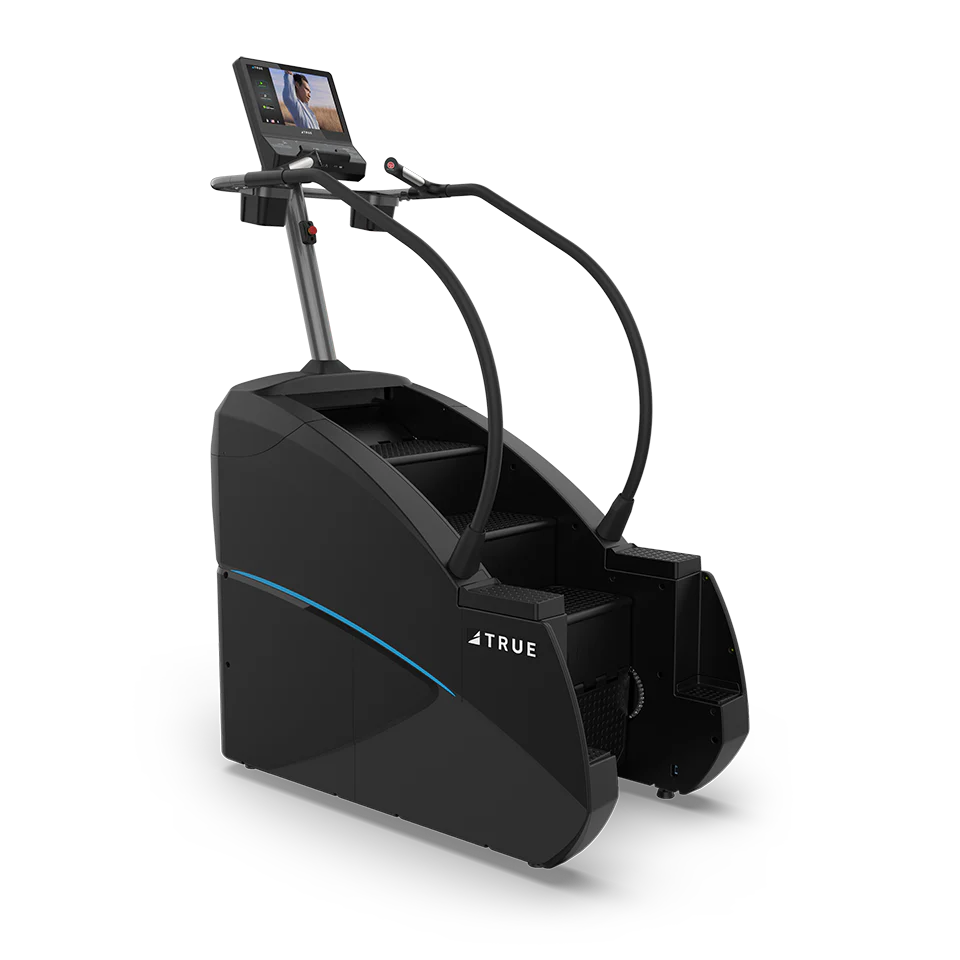

VC900-20 True Stepmill Commercial

PALISADE CLIMBER
Offering a premier double-braking system, best-in-class serviceability and versatile
ease-of-use, TRUE's Palisade Climber has been crafted to be rich in experience
and easy to service. An exceptional solution for your club.

DOUBLE-BRAKING SYSTEM
One brake keeps the product from over speeding, the other
brake locks down the steps when the machine is not in use.

FEATURES

• More square inches per step than similar products in the industry
• Step-up assistance (rear steps, integrated side pegs, dipping handrail)
• Double-Braking System
• Fixed transportation wheels are adjustable
• Heart Rate Sensors – contact and wireless
• Person present detection provides extra safety precaution
• Photo-interrupt safety sensor (additional)
• AC Drive System provides duarability
• Maximum user weight up to 400 lbs / 181.4 kg
• Resistance Level - 20
• Contact HR
• Dual Thumb switch control
• Dual bottle holders
• Easy-access front panels
• Sweat tray (optional)

PALISADE CLIMBER

TECHNICAL SPECIFICATIONS

• Power Source 120V & 220V w/ step-up and step-down transformers
• Cord Length 12' / 3.7 M
• Drive System AC Drive system
• Resistance Source Double-Braking System
• Resistance Levels 20
• Contact HR Contact & Wireless
• Frame Construction Anti-rust design with sweat prevention
• Sweat Tray Optional
• Step up platform Rear, Side, & Dipping handrail
• Safety System Additional Photo-Interrupt Safety Sensor
• Quick Access Control (1) Resistance Level thumb switch (Left) and (1) Stop/Pause thumb switch (Right)
• Contact Heart Rate Monitoring Yes
• Wireless Heart Rate Monitoring Polar®

AVAILABLE CONSOLES Envision II 16", Envision II 9", ShowRunner II, Emerge II

ASSET MANAGEMENT EcoFit

REGULATORY APPROVALS ETL UL1647, CSA, CE, EN957, FCC, AS4092, C-TICK

Accessories (2) Water Bottle Holders, Accessory Tray, Over Molded Reading Rack/Tablet Holder

PHYSICAL SPECIFICATIONS

• Dimensions 60.4" x 31.5"x 87.5" / 153.4 cm x 80 cm x 222.3 cm
• Machine Weight 433 lbs / 196.4 kg
• Shipping Weight 540 lbs / 245 kg
• Maximum User Weight 400 lbs / 181 kg
• Step-Up Dimensions 4.2" x 5.4” x 13.3” / 10.66cm x 13.7cm x 33.7cm
• Step-Up Height 13.3” / 33.3 cm
• Minimum Ceiling Height Recommendation 10 feet
• Portability Four (4) Transport Wheels

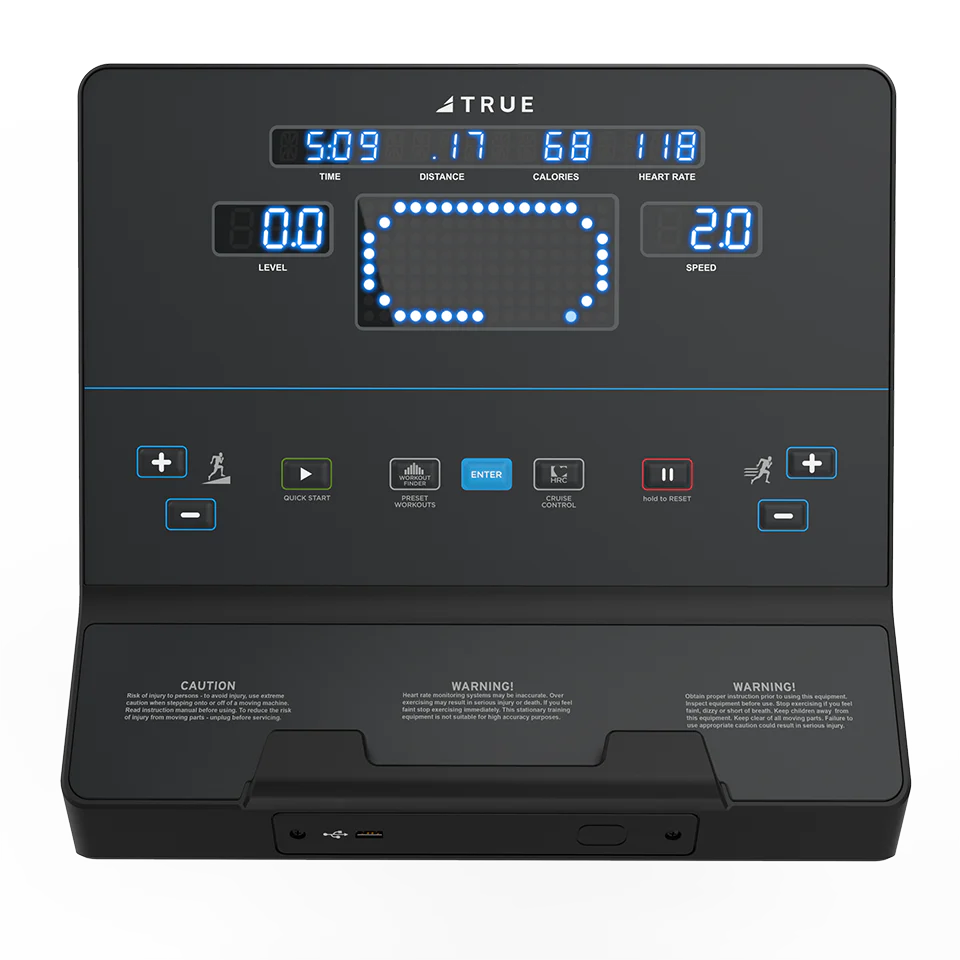

LED Console

Traditional LED console provides users a simple and inviting
design that is easy to navigate.

FEATURES

• SIMPLIFIED PROGRAMMING
  • Traditional console style allows users to visually see where
    they are on their run or workout and easily make transitions.
    Pre-programmed workouts help users achieve their goals
• ASSET TRACKING
  • Real-time asset management with usage
    reporting and notifications through ECOFIT®.



		White LED
ENTERTAINMENT & CONNECTIVITY	Displays	Time, Distance, Calories, Heart Rate, Incline, Speed, Track, Pace
	Heart Rate Control	Ö
	EcoFit	Compatible
	C-SAFE	Ö
	USB Ports	Ö
	Tablet Holder / Reading Rack	Ö
PROGRAMMING TREADMILLS	Total Workouts	10
	Heart Rate Control Programs	Ö
	HRC Cruise Control	Ö
PROGRAMMING ELLIPTICALS	Total Workouts	12
	Heart Rate Control Programs	Ö
	HRC Cruise Control	Ö
	Cardio 360 Total Body Workout	Ö
PROGRAMMING STATIONARY BIKES	Total Workouts	10
	Heart Rate Control Programs	Ö
	HRC Cruise Control	Ö
PROGRAMMING CLIMBERS	Total Workouts	7
	Heart Rate Control Programs	Ö
	HRC Cruise Control	Ö
SERVICE	Software Update via USB (USB-A port not designed for use with Apple devices)	Ö
	Self Diagnostics	Ö
	Locked Back End (Maintenance Mode)	Ö
POWER CONSERVATION                                            ERP Mode (Sleep Mode)		Ö
LANGUAGES		English
